CM1851

CM1851

Details

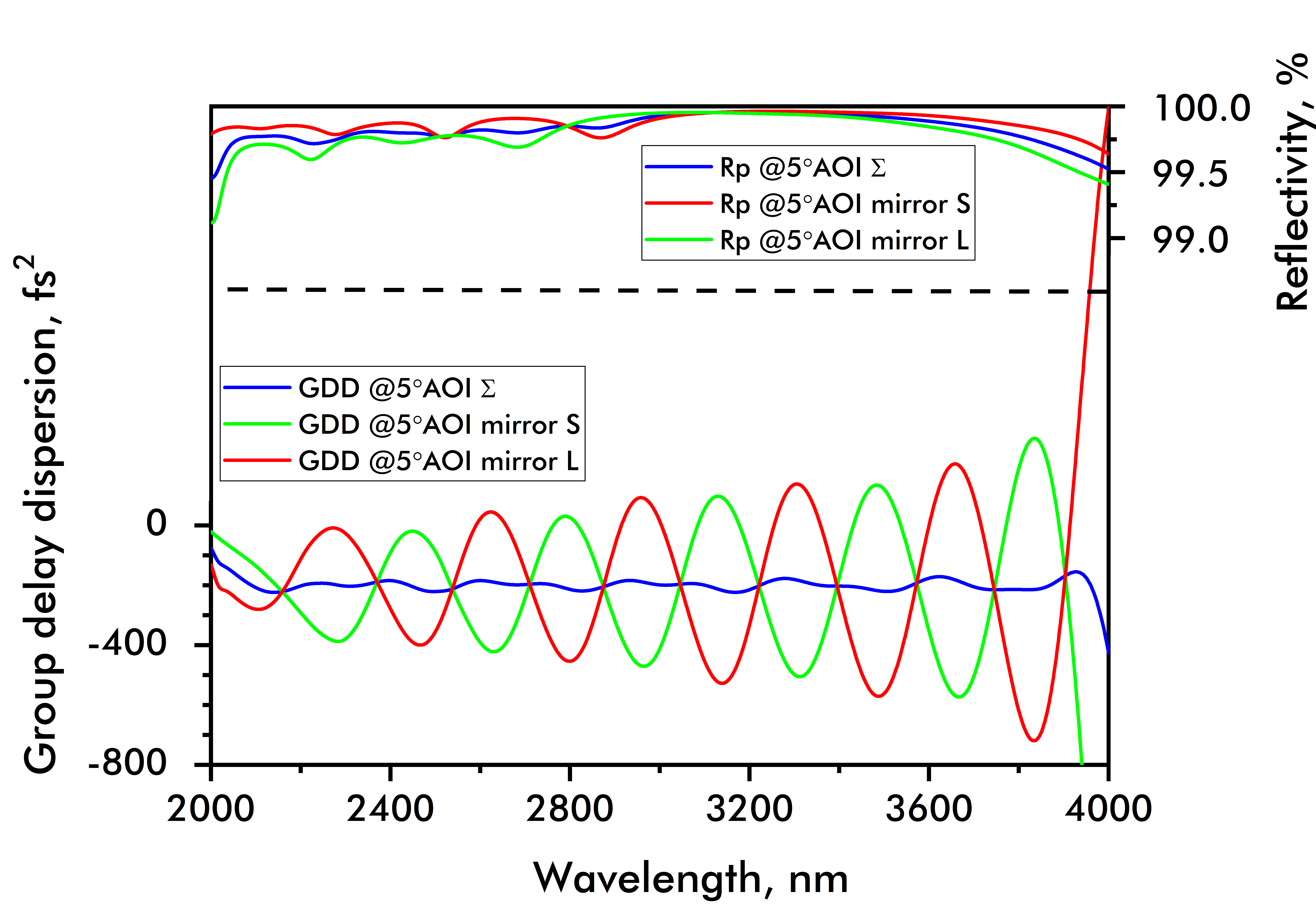

Description of the design Broad-band complementary pair
Type Mirror
Subtype BBDM (broad-band dispersive mirror)
Angle of Incidence in degrees 5 °
Angle of Incidence in degrees (double-angle) 5 °
Polarization regime (primary spectral range) p
Spectral category IR
Spectral working range low end 2000 nm
Spectral working range high end 4000 nm
Central wavelength 3000 nm
Nominal GDD -200 fs2
Minimum reflectance 99.5 %
Maximum reflectance -
Minimum transmission -
