Description of the design |
Broad-band high-reflective mirror |
Type |
Mirror |
Subtype |
HR (high-reflection) mirror |
Nominal GDD |
-fs2 |
First working range |
|
Angle of Incidence in degrees |
45 ° |
Angle of Incidence in degrees (double-angle) |
- |
Polarization regime (primary spectral range) |
s |
Spectral category |
VIS-IR |
Spectral working range low end |
300 nm
|
Spectral working range high end |
1000 nm
|
Central wavelength |
650 nm
|

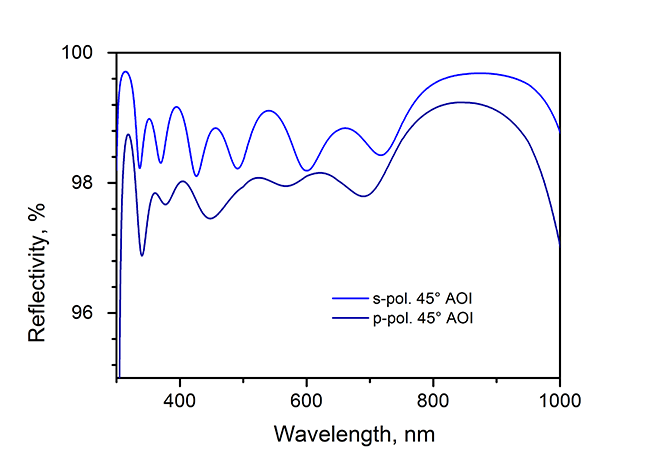

Minimum reflectance |
98 % |
Maximum reflectance |
- |
Minimum transmission |
- |
Second working range |
|
Second spectral working range low end |
300 nm |
Second spectral working range high end |
1000 nm |
Polarization regime (second working range) |
s |
Minimum reflectance |
97 % |
Minimum transmittance |
- |
