PC1305_RC2

PC1305_RC2

Details

Description of the designBroad-band double-angle dispersive mirror
TypeMirror
SubtypeBBDM (broad-band dispersive mirror)
Angle of Incidence in degrees-
Polarization regime (primary spectral range)p
Spectral categoryVIS-IR
Spectral working range low end690 nm
Spectral working range high end870 nm
Central wavelength780 nm

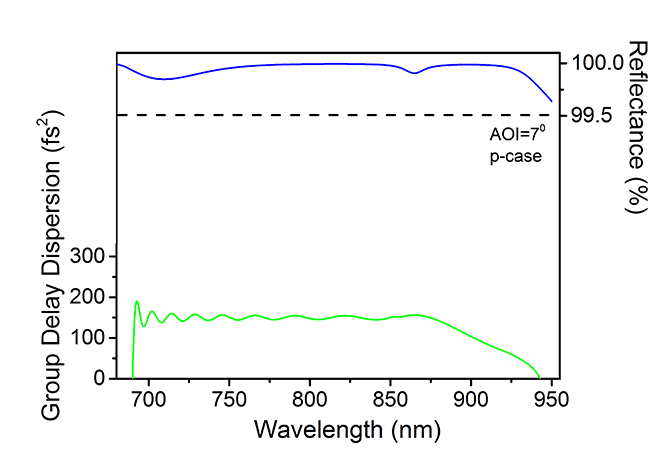

Nominal GDD150 fs2
Minimum reflectance99 %
Maximum reflectance-
Minimum transmission-
