PC139_RC2

Details

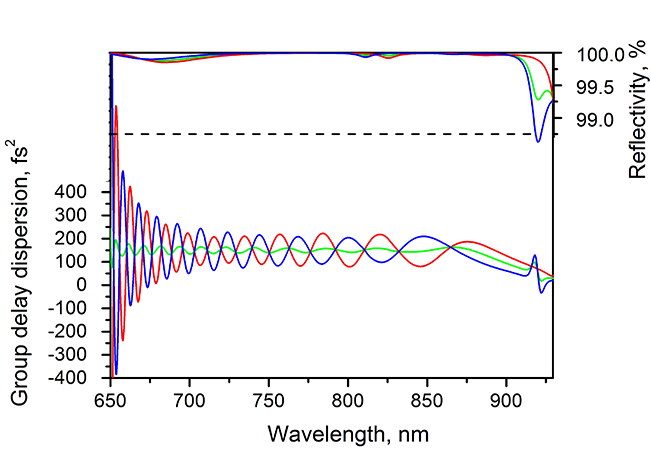

Description of the design | Broad-band complementary pair with positive dispersion |
Type | Mirror |
Subtype | High(positive)-dispersion mirror |
Angle of Incidence in degrees | 5 ° |
Polarization regime (primary spectral range) | p |
Spectral category | VIS-IR |
Spectral working range low end | 660 nm |
Spectral working range high end | 900 nm |
Central wavelength | 780 nm |
Nominal GDD | 150 fs2 |
Minimum reflectance | 99 % |
Maximum reflectance | - |
Minimum transmission | - |
