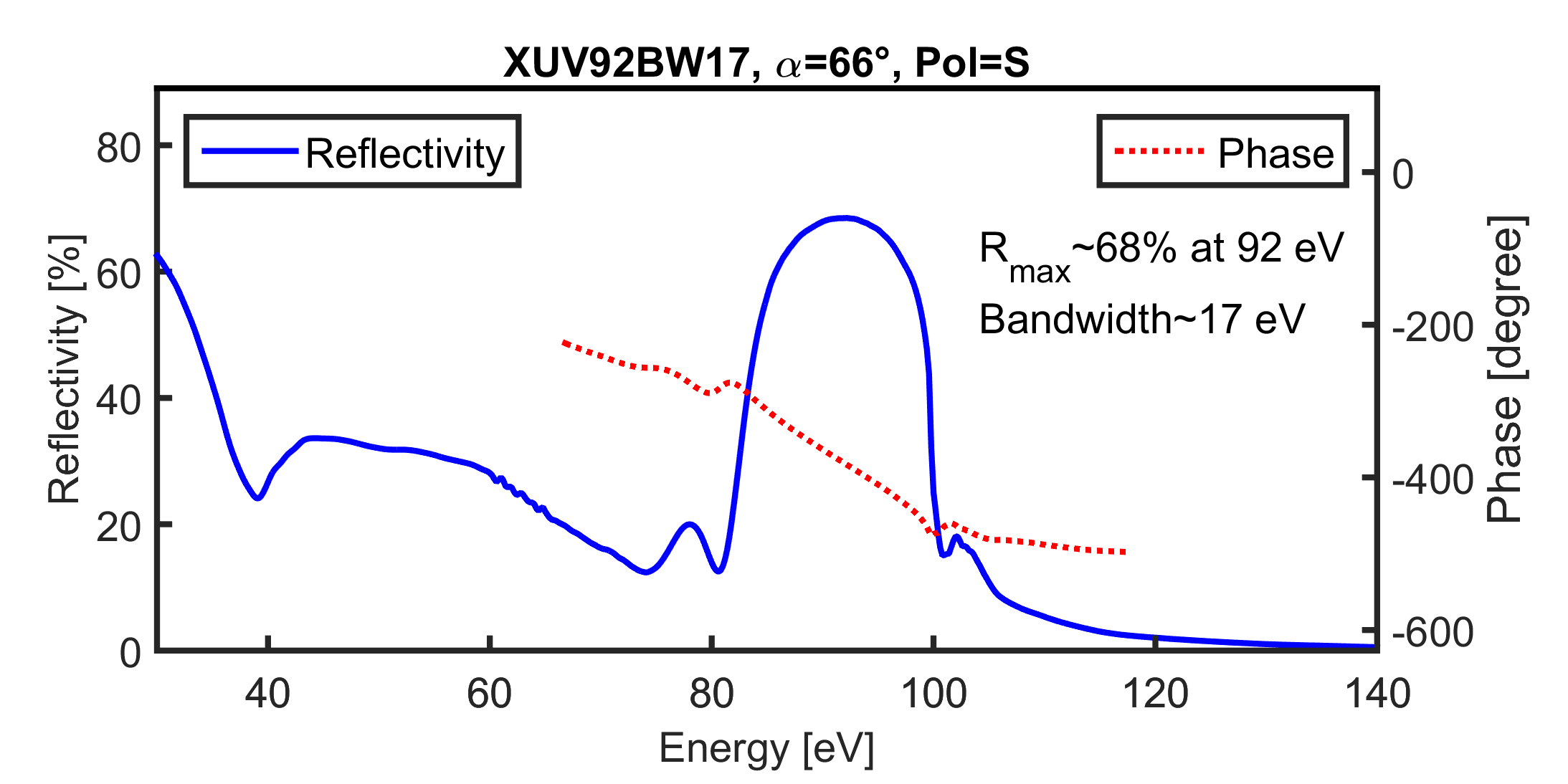

XUV92BW17

XUV92BW17

Details

Description of the design XUV mirror
Type Mirror
Subtype XUV mirror
Angle of Incidence in degrees 66 °
Polarization regime (primary spectral range) s
Spectral category XUV
Spectral working range low end 10.3 nm30 eV
Spectral working range high end 41.3 nm-
Central wavelength 13.5 nm92 eV
Nominal GDD -0.01 fs2
Minimum reflectance -
Maximum reflectance 68 %
Minimum transmission -
